Quick Start

R7X is a 7-inch quick-release smart display designed for most motorcycles. Simply mount the RiderNav quick-release cradle on your bike and connect the power cable. Once installed, R7X is plug-and-play-it works through Apple CarPlay or Android Auto to mirror your phone, giving you easy access to navigation, music, and other supported apps on the screen.

Ports & Slots

MicroSD Card Slot

The microSD card slot is located on the side of the unit. Use the included screwdriver to loosen the screw, insert a microSD card (card not included), then go to R7X Settings > Storage to format the card. For OTA firmware updates, we recommend an 8–32 GB card.

Note: The microSD card is required only for OTA updates and is not needed for daily use. Please make sure the screw and waterproof gasket/strip are fully tightened afterward.

USB Type-C Port

There is a USB-C port on the back of the unit. You can remove the screws and power the device using a 5V 2A USB-C to USB-A cable (cable not included).

After powering, fully tighten the screws and waterproof gasket to maintain water resistance—if the seal is not secure, water may enter the display, and water damage is not covered under warranty.

In the Box

Everything you need to get started. The RiderNav R7X comes complete with all essential components for installation and operation. The quick-release cradle allows for easy mounting and removal, while the included mounting bracket securely attaches to your motorcycle. Diameter adapters ensure compatibility with various handlebar sizes, and the screwdriver and hardware make installation straightforward.

Installation Instructions

Step 1 — Mount the Bracket

① Choose a suitable mounting location (clear view, easy access, does not block instruments or steering).
② The included bracket fits Φ22-32 mm round handlebars. Select the correct adaptor for your handlebar diameter, then tighten the bracket securely.
③ Tighten all screws firmly to prevent movement.

Step 2-Connect to Power

① Connect the red wire to the positive terminal, black wire to the negative terminal.
② Yellow wire to the motorcycle ACC (switched power).

Tip： How to find ACC (switched 12V):Check your motorcycle manual/service guide for ACC/IGN/switched 12V.
Common locations: fuse box, OEM accessory connector, or wiring near the ignition switch.
Verify with a multimeter: ignition OFF = no voltage; ignition ON = ~12V.
If unsure, professional installation is recommended.

Step 3-Power Check

① After starting the motorcycle, insert the R7X into the cradle and make sure it powers on. (The display must be aligned with the cradle to insert. The correct orientation is when the RiderNav logo is at the bottom-left of the screen.)

② Gently push or pull the R7X to confirm it is securely seated and locked.
③ Press the release pin on the cradle to remove the R7X. Hold the unit while releasing to prevent it from falling and getting damaged.

Quick-Release Latch & Safety Indicator

Latch Location

The release latch is on the upper-right side of the mount.
The safety indicator window is on the upper-left side.

Press to Release

Press the latch until the indicator turns red, then remove the R7X from the mount.

Check Before Riding

Insert the R7X into the mount and press it firmly until the indicator window turns full green.

HALF RED/GREEN, it is not secure.

window turns FULL GREEN to ensure it is safely locked.

Anti-Theft Security Lock

Follow these steps to disable the quick-release function so the R7X cannot be removed without tools.

① Remove Cover

Use the included screwdriver to remove the two screws and the cover plate located next to the Quick-Release Latch.

② Engage Lock: Slide the internal toggle switch to the opposite position. This disables the latch mechanism so it cannot be pressed.


③ Reassemble: Reinstall the cover plate and tighten the screws securely.

Step-by-Step Installation Videos

Select the installation method that works best for your bike—we have video tutorials for both the standard bracket and the optional crossbar mount.
Alt image

Standard Bracket Installation

Alt image

Crossbar Mount Installation（Optional）

Device Activation

Once installed, the R7X is powered directly by the included quick-release bracket. It turns on automatically when you start the motorcycle and powers off when the ignition is turned off—no buttons required.

Tips: If activation fails, try connecting to your phone's hotspot or another Wi-Fi network.

① Enter Activation Interface

When the device starts, go to the activation page and tap Connect to begin.

② Confirm to Activate

The system will pop up a prompt asking if you want to activate now. Select Yes to continue.

③ Activation in Progress

The device will automatically complete the activation process. This may take a short while.

④ Activation Completed

A confirmation Popup will appear once the device is successfully activated.

User Interface Overview

Homepage Interface Guide

① Altitude & Sunset
Shows your current altitude and today's sunset time. Tap to switch.


② Trip Distance & Heading
Shows your trip mileage and ground heading (direction of travel). Tap to switch.


③ Speed
Shows the real-time riding speed.


④ Front Tire Pressure
Monitors the front tire pressure in real time.


⑤ Rear Tire Pressure
Monitors the rear tire pressure to ensure safe riding.

⑥ Screen Casting
Enter the screen casting mode to project navigation and apps from your phone.



⑦ Dashboard View
Switch to the dashboard screen to highlight key ride data, including speed, battery voltage, tire pressure, ride time, and trip distance.

⑧ Settings
Open Settings to adjust system options, features, and preferences.

⑨ Time
Displays the current system time.

⑪ GPS / Wi-Fi / Bluetooth Status
Indicates the status of GPS signal and Bluetooth connection.
Title

Wireless Mirroring

R7X supports multiple wireless screen mirroring protocols, allowing you to project smartphone navigation, music, and calls directly onto the dashboard. Depending on your region and system settings, different mirroring options will be available.

Which Apps Work with CarPlay and Android Auto on RiderNav?

CarPlay

Connect your iPhone via Bluetooth to activate Apple CarPlay, allowing seamless access to navigation, calls, music, and messages directly on the screen.

Android Auto

Pair your Android device with the system via Bluetooth to enabled Android Auto. Enjoy voice-assisted navigation, media playback, and communication features safely while riding.

HiCar

Enable Huawei HiCar by connecting your Huawei phone via Bluetooth. Once the device is detected, enter the pairing code for first-time verification.

CarLink

Activate CarLink by pairing your smartphone via Bluetooth. Enter the matching code to establish a stable and secure connection.
Title

Dashboard Interface Guide

① Battery Voltage
Shows the current voltage of the batter


② Speed
Shows current speed in km/h or mph.


③ Front Tire Pressure
Monitors the pressure of the front tire.


④ Rear Tire Pressure
Monitors the pressure of the rear tire.

⑤ Altitude
Displays current riding altitude.


⑥ Odometer
Shows the accumulated riding distance.



⑦ Ride Time
Total time of the current ride session.


⑧ Trip Distance
Distance traveled on this ride.

System Settings

Access and customize your R7X display's core configurations to optimize your riding experience.

Display Brightness
Adjust screen brightness and enable automatic brightness.



Storage
Check available space on the SD card and format it when necessary.



Functions
Access key features such as time, TPMS, Bluetooth headset, GPS and action camera control.


Update
Upgrade to the latest system version for better performance (SD card required).

Language
Choose and set your preferred system display language.



Reset
Restore factory settings and clear all custom configurations.



About
View device serial number, software version, and Bluetooth information.


More
Access additional options, including mileage (km/mi) and temperature (°C/°F) units.
Title

Features

The R7X Functions interface gives you complete command over your ride's essential systems, ensuring safety, convenience, and connectivity mile after mile.

Time
Set the time format, select the time zone, and synchronize the time via GPS for precise accuracy.


TPMS
Monitors front and rear tire pressure in real time, with alerts for abnormal values to ensure safety. Compatible with BMW original tire pressure sensors.


Bluetooth Headset
Connects to Bluetooth headsets for navigation voice prompts, music playback, and phone calls, making your ride smarter and more convenient.


GPS
Displays real-time satellite signal strength.


Action Camera Control
Control the action camera directly through the system for easy video capture while riding.
(Requires latest firmware update)



Switching Channel

To fix connection failures or frequent drops, manually select a different Wi-Fi channel from the list. Performance depends on local interference. (Requires latest firmware update)



DFS Channel Switching (Japan Model Only)
R7X is TELEC-certified for use in Japan. This setting allows you to switch between 2.4GHz, 5GHz (W52), and W56 frequency bands. （The 5GHz band is recommended for best performance. When using in Japan, please comply with local regulations by selecting the appropriate W52 or W56 band.）

System Update

To ensure stable performance and access to the latest features, R7X supports firmware updates.

Release Notes

① Check for Updates

Go to Settings > System Update, and tap Check for Updates. The system will automatically detect if a new version is available.

② Download and Install

If a new version is found, tap Update Now to start the download. After downloading, R7M will automatically install and restart. Please make sure the device has sufficient power during the update.

③ Update Complete

Once the installation is finished, the system will confirm that the update was successful. If the device shows it's already up to date, no further action is needed.

The R7X does not include an SD card. We recommend purchasing an 32GB SD card for OTA (Over-The-Air) firmware updates.

Specifications

Dimensions: 185.7 × 102 × 36 mm

Display: 7-inch, 1280 × 720 IPS

Weight: 382 g

Waterproof Rating: IP69K

Operating Voltage: 12–18V DC

Operating Temperature: -20°C to 60°C

RAM: 2 Gbit

WLAN: 2.4G / 5G

Bluetooth: 5.0

GPS Module: built-in GPS receiver
Storage: Side-mounted SD card slot (card not included, 32GB recommended for OTA updates)

RiderNav Display & Accessories

R7M 7-inch Display: Built for BMW. Made for Control.
22% off

R7M 7-inch Display: Built for BMW. Made for Control.

$389.99 USD
$499.00 USD

View more

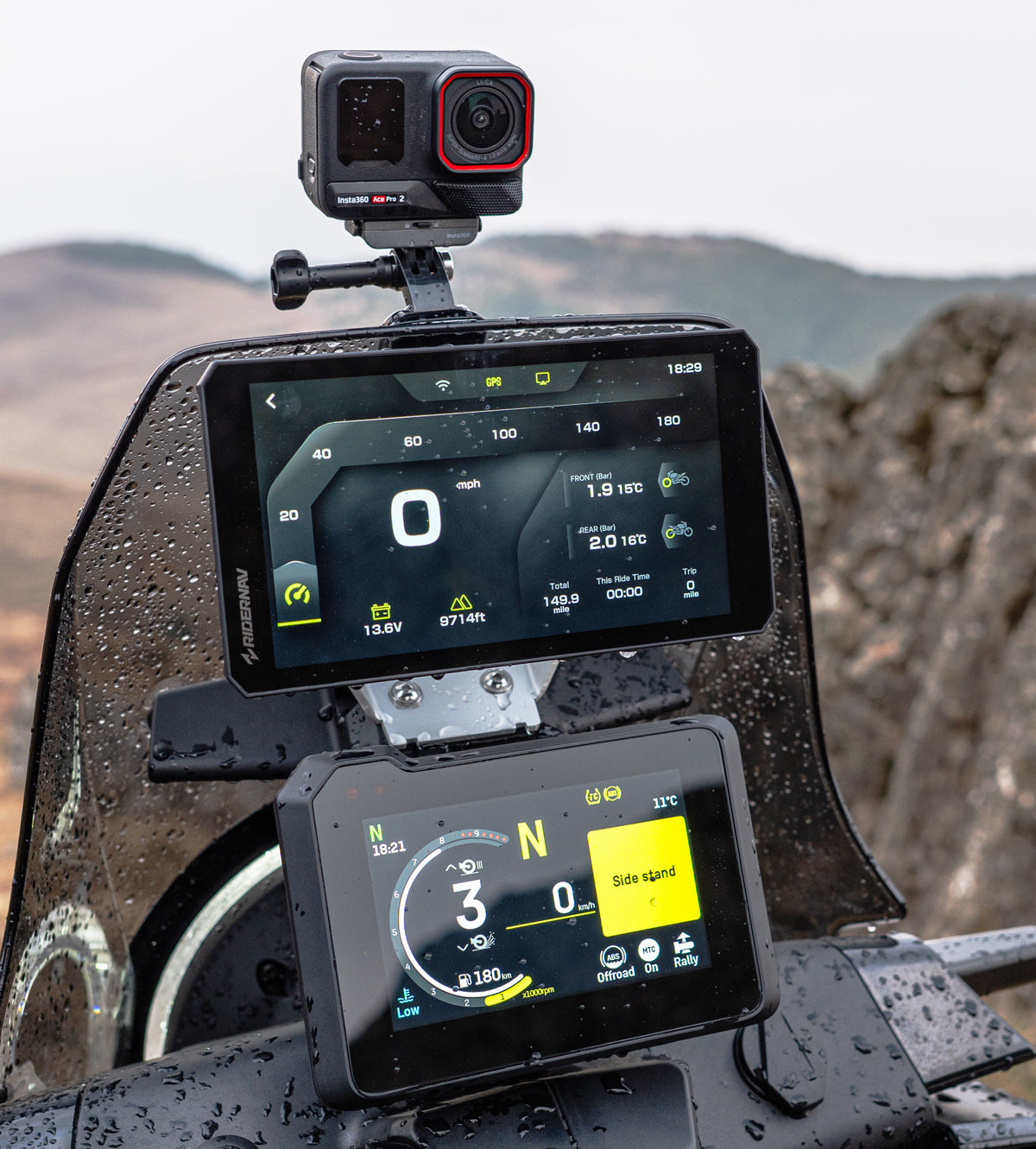

R7X 7-inch Display: Built to Fit. Made to Ride.
